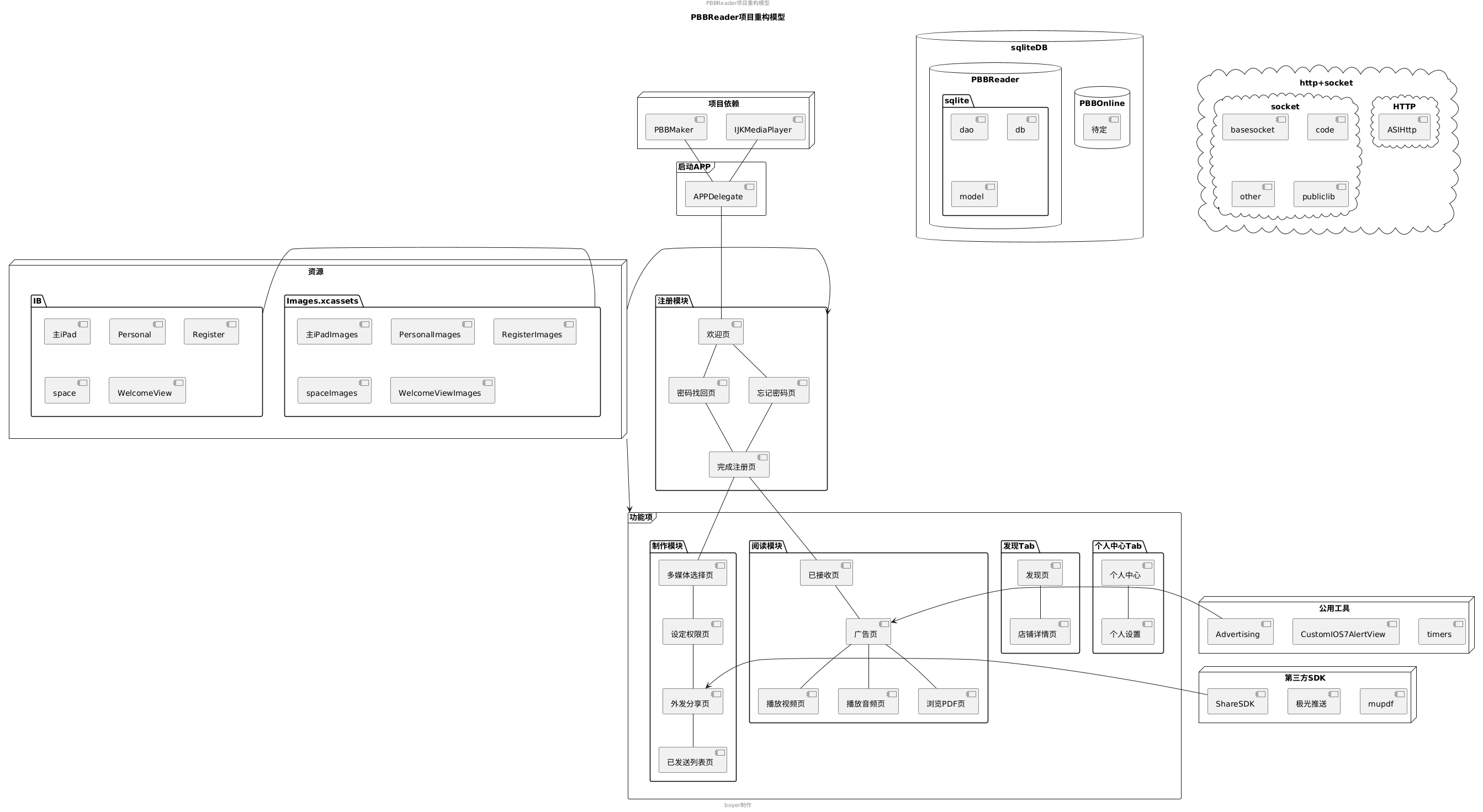

title PBBReader项目重构模型
center header
PBBReader项目重构模型
endheader

'******* 声明组件模块 component/[组件名] 中括号支持\n换行 *******'

'---- 声明备注:组件线备注可以通过虚线".."连接到其他对象---'



'#####  备注模块 位置：left/right/top/bottom  #####'




'&&&&&& 组件组合模块 支持模块嵌套 &&&&&&&'
'六种组合样式:Node,Rectangle,Folder,Frame,Cloud,Database'
Frame "启动APP"{
    [APPDelegate] as LaunchAPP
}
Folder "注册模块"{
    [欢迎页] -- [密码找回页]
    [欢迎页] -- [忘记密码页]
    [密码找回页] -- [完成注册页]
    [忘记密码页] -- [完成注册页]
}
Frame "功能项"{
    Folder "制作模块"{
        [多媒体选择页] -- [设定权限页]
        [设定权限页] -- [外发分享页]
        [外发分享页] -- [已发送列表页]
    }
    Folder "阅读模块"{
        [已接收页] -- [广告页]
        [广告页] -- [播放视频页]
        [广告页] -- [播放音频页]
        [广告页] -- [浏览PDF页]
    }
    Folder "发现Tab"{
        [发现页] -- [店铺详情页]
    }
    Folder "个人中心Tab"{
        [个人中心] -- [个人设置]
    }
}
Database "sqliteDB" {

    'reader数据库
    Database "PBBReader" {
        Folder "sqlite" {
            [dao]
            [db]
            [model]
        }
    }
    'online数据库
    Database "PBBOnline" {
        [待定]
    }
}

Cloud "http+socket"{
    Cloud "socket"{
        [basesocket]
        [code]
        [other]
        [publiclib]
    }

    Cloud "HTTP" {
        [ASIHttp]
    }
}

Node "第三方SDK"{
    [极光推送]
    [ShareSDK]
    [mupdf]
}

Node "公用工具"{
    [CustomIOS7AlertView]
    [timers]
    [Advertising]
}

Node "项目依赖"{
    '[SZMobileSDK] -- LaunchAPP
    [PBBMaker] -- LaunchAPP
    '[PBBMaker] --> [设定权限页]
    [IJKMediaPlayer] -- LaunchAPP
    '[IJKMediaPlayer] --> [播放视频页]
}

Node "资源"{
    folder "IB"{
        [主iPad]
        [Personal]
        [Register]
        [space]
        [WelcomeView]
    }

    folder "Images.xcassets"{
        [主iPadImages]
        [PersonalImages]
        [RegisterImages]
        [spaceImages]
        [WelcomeViewImages]
    }
}

'>>>>>>>>>>  关系模块  >>>>>>>>>>'
LaunchAPP -- [欢迎页]
[完成注册页] -- [多媒体选择页]
[完成注册页] -- [已接收页]
[ShareSDK] -left-> [外发分享页]
[Advertising] -right-> [广告页]
IB -right- Images.xcassets
资源 -left-> 功能项
资源 -right-> 注册模块
center footer
boyer制作
endfooter
